230L Drum Blow Molding Machine
TJ-HB230L Chemical Drum Blow Molding Machine
For open-head and double-ring drum projects, TONGJIA starts from the finished drum product, then confirms the layer structure, mold scope, automation level, auxiliary equipment, and quotation path before pricing.
- Drum TypesOpen-Head / Double-Ring
- Capacity Focus160L-230L Drums
- Quote LogicDrawing Or Sample First
Standard configuration shown. Automation can be discussed as an option.
Product Class160L-230L Chemical Drums
Quote MethodRequirement-Based
Drum TypesOpen-Head / Double-Ring
Use CaseIndustrial Chemical Packaging
Interest: container fit
Confirm what drum you need to make before choosing the final line scope.
The TJ-HB230L discussion should connect the equipment with the finished packaging container. Use these categories to prepare drawings, sample photos, dimensions, material, layers, and output expectations.
Product Reference
230L Double-Ring Drum
Large chemical container reference. Ring geometry, stacking strength, product weight, and mold plan affect the final line configuration.Project Discussion
Open-Top Drum Projects
For open-top or wide-mouth drums, share the mouth diameter, cover design, trimming method, product drawing, sample photo, and target output.Configuration Check
Large Ring Drum Projects
For 230L-250L class ring drums, confirm ring profile, gross weight, layer structure, mold scope, cooling plan, and plant layout first.Application fit
Use the drum application to narrow the configuration.
Most chemical drum projects are not decided by model name alone. The right machine direction starts with the product drawing, material, layers, output target, handling method, and plant layout.- Closed-head and double-ring chemical packaging drums.
- Open-head industrial drums with lid and sealing ring requirements.
- Large plastic barrels and comparable hollow containers in the 160L-230L class.
- Projects where output, automation, mold design, and auxiliary equipment affect the final quote.
Double-Ring Chemical Drum
Open-Head Chemical Drum
Fast Qualification
Have A Drum Drawing, Sample Photo, Or Target Capacity?
Send it first. TONGJIA can check the basic production direction before preparing a requirement-based quotation.
Why TONGJIA
A semi-custom industrial drum blow molding machine should be specified by configuration, not a rough online price.
The goal is to help buyers avoid a wrong specification. TONGJIA confirms the product, mold, layer structure, automation scope, utilities, installation plan, and commercial scope before quoting.Standard Line First
The standard TJ-HB230L solution is the reference point, keeping the project clear before optional automation is added.
Layer Configuration
Single-layer, double-layers, and three-layers can be discussed according to material, barrier, strength, and cost targets.
Mold And Auxiliaries
Mold design, trimming, cooling, air supply, material handling, and downstream equipment can change the real project scope.
Manufacturer Backing
This product site is connected with TONGJIA and the flagship company site at en.tongjia.com.
Desire: packaging context
The machine decision should reflect the real chemical packaging workflow.
A stronger inquiry includes where the drum will be filled, sealed, handled, stored, and transported. That context affects mold details, downstream handling, and automation scope.Chemical Filling And Closure
Mouth design, cap or lid structure, sealing surface, material compatibility, and leakage test requirements affect the mold and trimming plan.
Warehouse And Pallet Handling
Stacking height, ring strength, forklift direction, label area, pallet size, and transport conditions should be confirmed before configuration.
Mold And Layer Structure
Product drawings help define mold cavity, die head capacity, single-layer or multi-layer structure, cooling, trimming, and auxiliary equipment.
Plant Layout And Utilities
Line placement, cooling water, compressed air, power supply, operator plan, downstream handling, and installation scope shape the quotation.
Configuration choice
Standard first, automation only when the project needs it.
The main product visual uses the 230L standard solution. The fully automatic unmanned solution is positioned as a customer-selected option, because automation should follow the buyer's labor plan, cycle time, and layout.- Choose the standard solution when the project needs a clear, practical starting configuration.
- Add automation after confirming handling, trimming, inspection, labor plan, and plant layout.
- Keep the quotation aligned with the real drum project instead of paying for options too early.

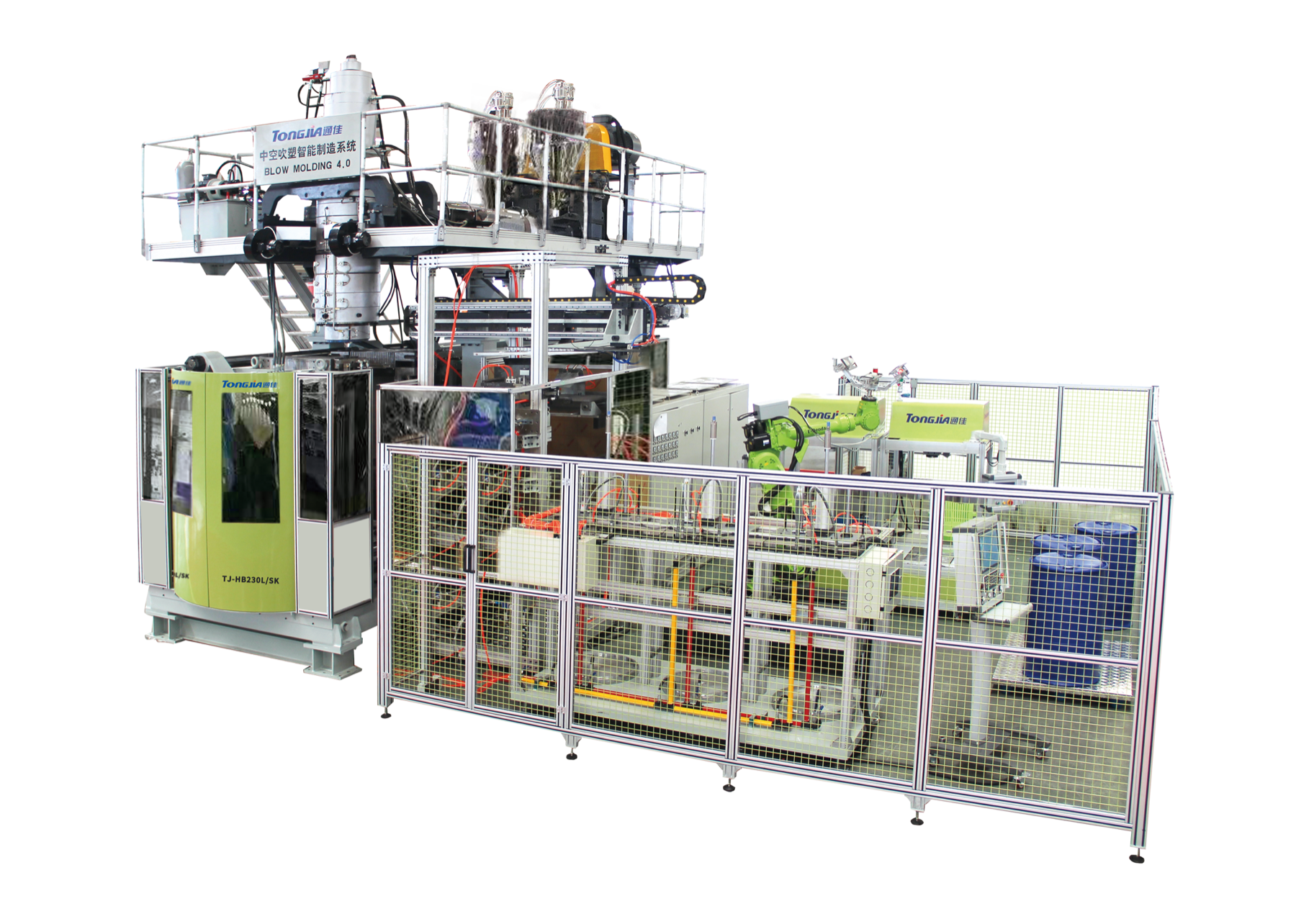

Customer-selected fully automatic option
Action: quote readiness
Send the details that help TONGJIA give a useful first answer.
You do not need a complete technical file to start. A drawing or clear product photo plus the basic production targets is enough for the first qualification step.Quotation flow
A cleaner path from product interest to workable quote.
The quotation process is designed to reduce guesswork before price discussion.- Share Drum Requirement.Volume, drawing, material, layers, target output, and destination.
- Confirm Technical Direction.TONGJIA checks mold, line configuration, auxiliary equipment, utilities, and service scope.
- Prepare Project Quote.Sales provides a quotation aligned with confirmed requirements instead of a generic online price.
Technical proof
Public specification table for the HB160-HB230L chemical packaging series.
Use the table for orientation after the application and configuration direction is clear. Final values and scope should be confirmed in the contract and technical proposal.| Parameter | TJ-HB160L Single-Layer | TJ-HB160L Double-Layers | TJ-HB230L Single-Layer | TJ-HB230L Double-Layers | TJ-HB230L Three-Layers |
|---|---|---|---|---|---|
| Max. Drums Capacity | 160 L | 160 L | 230 L | 230 L | 230 L |
| Machine Size | 6.8 x 4.6 x 4.7 m | 6.8 x 4.6 x 4.7 m | 8.4 x 4.9 x 5.5 m | 8.4 x 4.9 x 5.5 m | 8.4 x 5.5 x 5.5 m |
| Approx. Machine Weight | 22 tons | 24 tons | 35 tons | 38 tons | 38 tons |
| Die Head Capacity | 13.8 / 16 L | 13.8 / 16 L | 25 L | 25 L | 25 L |
| Max. Die Diameter | 450 mm | 450 mm | 550 mm | 550 mm | 550 mm |
| Clamping Force | 820 kN | 820 kN | 900 kN | 900 kN | 900 kN |
| Mold Platen Size | 1020 x 1250 mm | 1020 x 1250 mm | 1320 x 1600 mm | 1320 x 1600 mm | 1320 x 1600 mm |
| Screw Diameter | 110 mm | 80 mm x 2 | 120 mm | 100 mm x 2 | 90 + 110 + 90 mm |
| Plasticizing Output | 330 kg/h | 180 kg/h x 2 | 400 kg/h | 220 kg/h x 2 | 220 kg/h x 2 + 330 kg/h |
| Installed Power | 217 kW | 229 kW | 276 kW | 356 kW | 447 kW |
Dimensions are shown as L x W x H. Mold platen size is shown as W x H.
